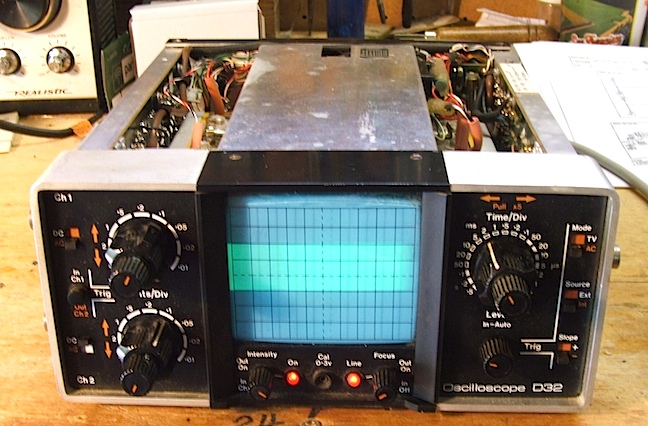

 Out of focus trace
This is the best it would do to show a trace. After studying the schematics, I began measuring resistances, then voltages. |

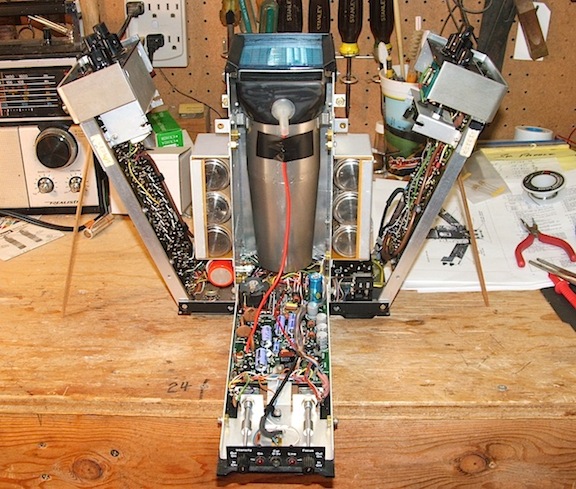

 Circuit board panels
Here the scope is wide open making it easy to test components, even while powered up. No ICs, just transistors. |

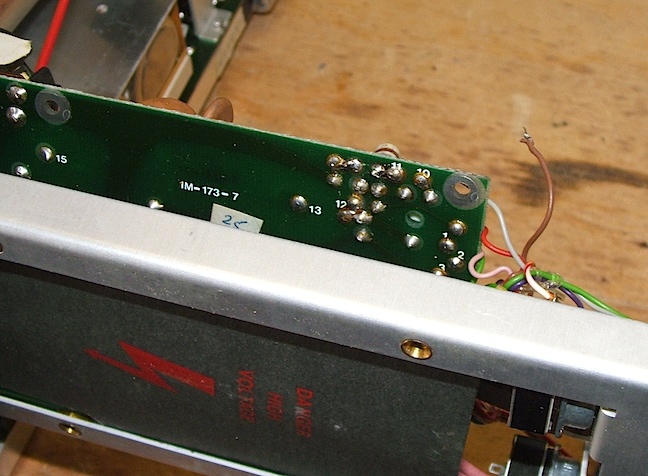

PCB moved for repair
Here is the underside of the CRT control circuit board. I was able to lift it enough to remove the bad resistor and solder in the new one.
|

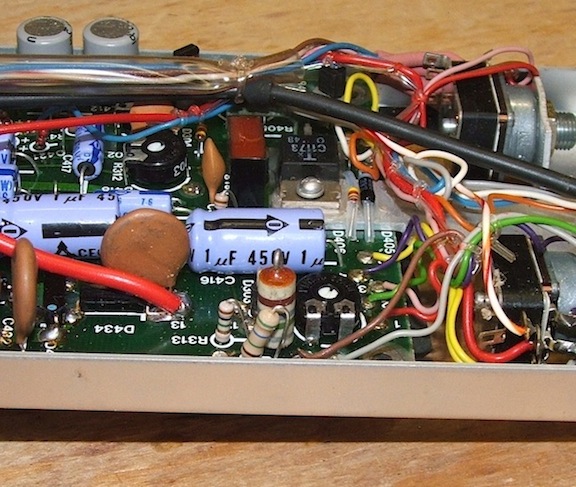

 The new resistor
The new 5M6 ohm resistor can be seen at the forward edge of this picture just in front of the 1M8 1 watt resistor.
|

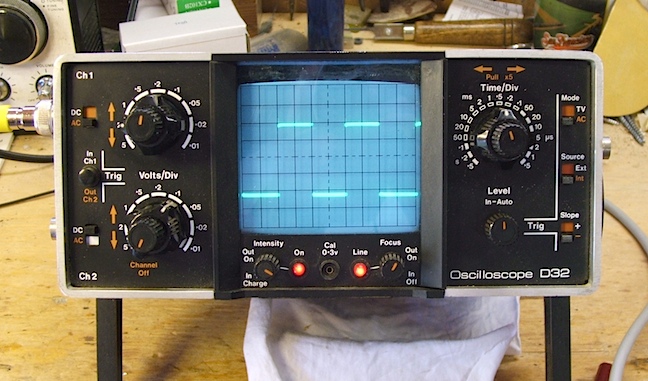

 A 5.76 mHz trace
The trace of a 5.76768 mHz crystal from my crystal tester. Measured at .5us and 5X. Considering the 10mHz limit of the scope, it looks okay.
|
